Controller Essentials: PREWIRED (FD) Bundle inc SurRon Style Throttle w Choice of Grips, Key Voltmeter & 3 Speed

3/29:  Kunray Kit owners—I highly recommend adding our Gen 2 replacement wire harness … unless you like re-wiring their altered harness.  😂

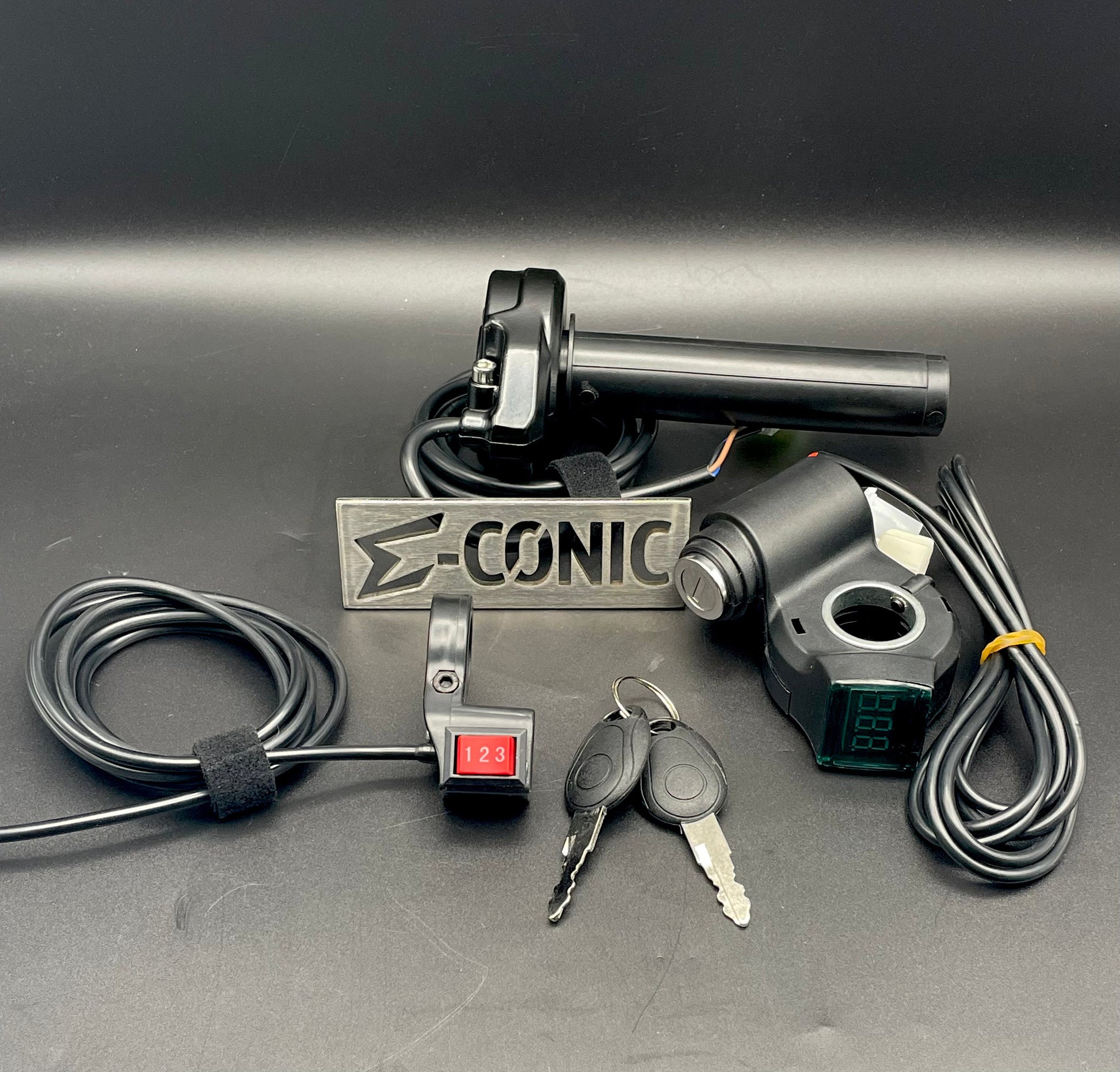

Need it all?  Premium throttle, key voltmeter, and 3 speed switch PREWIRED for your FarDriver?  All components are approx 100cm in length, so no need to extend!

Continuous improvement and choices.  That's what we're all about at E-Conic!  Metal housing, more robust POTTED internals (not all SurRon style throttles are created equal), smooth operation, and PREWIRED (100cm) for Fardriver!  Key voltmeter maxes out at 120V.

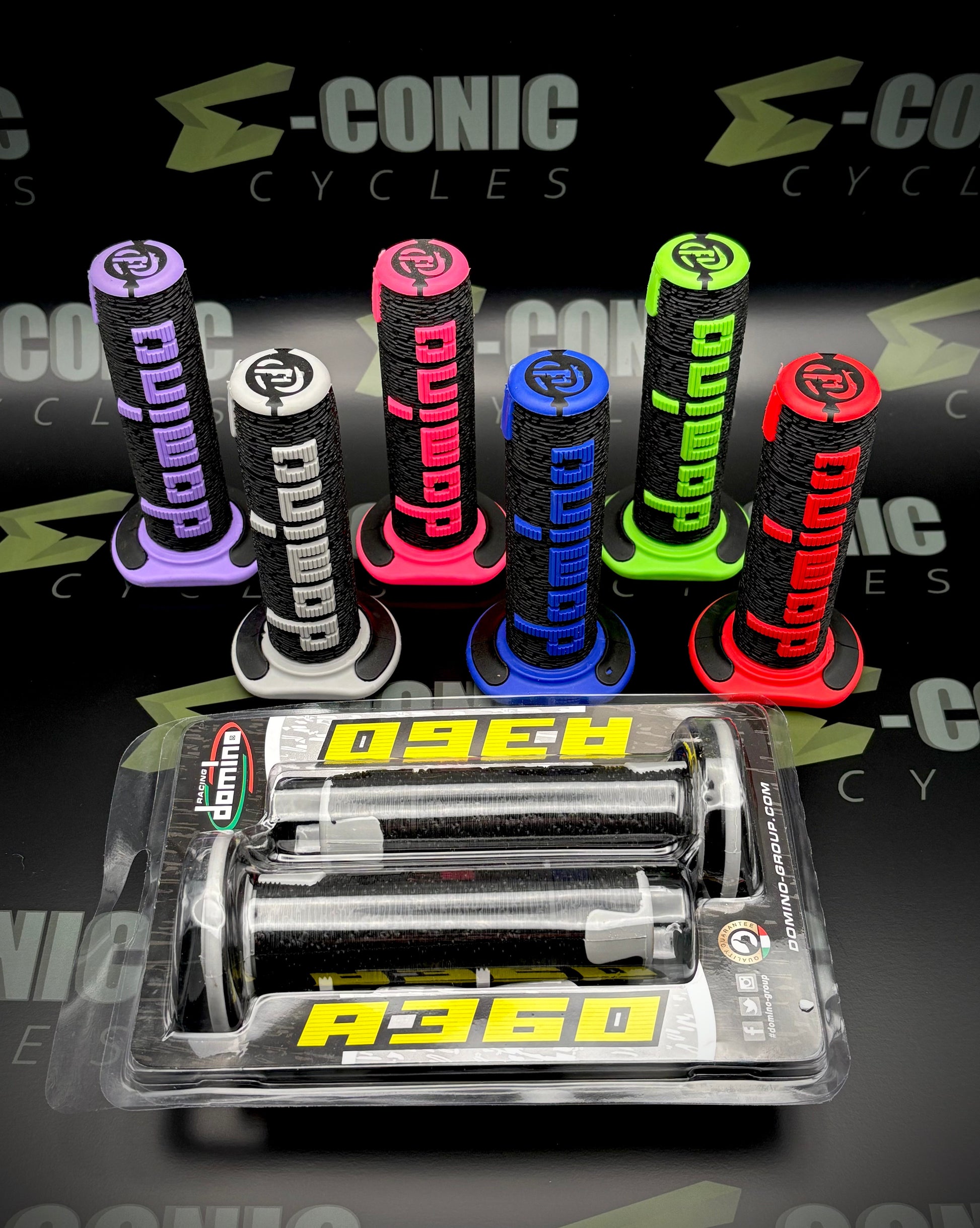

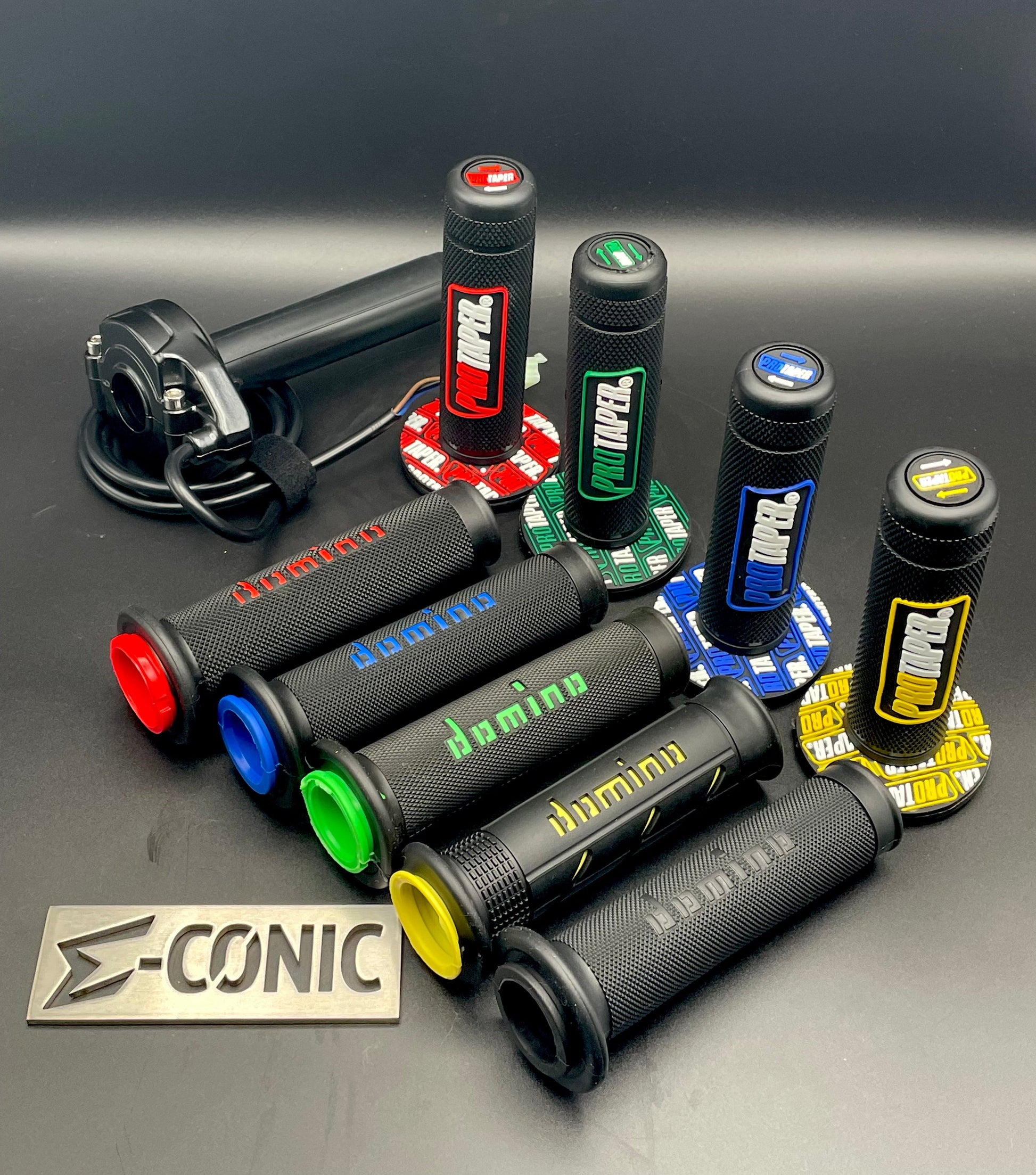

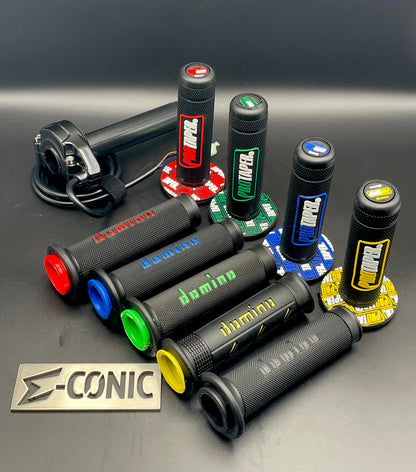

Throttle comes with simple 2.8mm, 3 pin connection--simply plug it in to the throttle port of your FarDriver harness & go!  Several Domino A360 grip options!

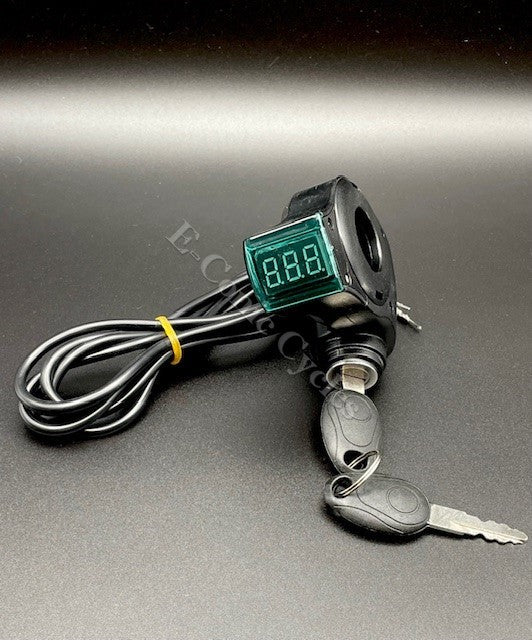

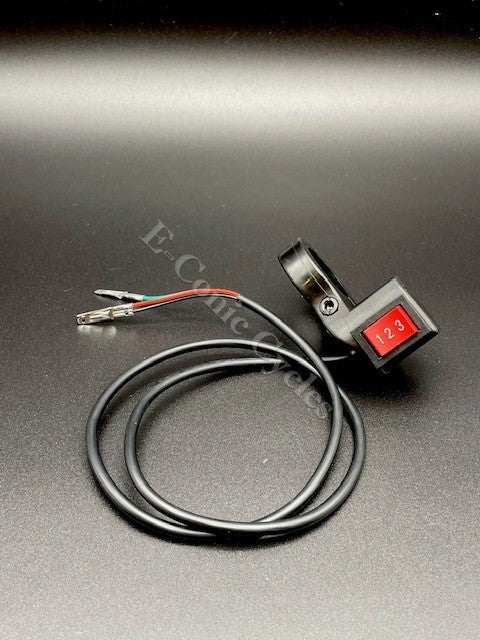

Note:  DISCONNECT battery when wiring up key voltmeter.  Key Voltmeter--plug two pin voltmeter plug into the two pin RED connector on FarDriver harness.  The one pin connector goes to the one pin ORANGE key lock wire on FarDriver.  3 Speed plugs into the 3 pin BLUE connector on FarDriver harness.  Throttle goes into the WHITE 3 pin connector.

Always check the pins to ensure alignment--never force a connector.

Prewired items only work with the normal FD harness.  The Kunray controllers alter the normal FD harness.  You will need to depin the orange wire from their 2 pin connector and wire it direct to the red wire from the key voltmeter.

If your harness is for an encoder that has a 9 pin, 8 pin, and 6 pin Furukawa connector on the primary harness, this will NOT work.  Normal encoder harnesses only use one 8 pin Furukawa

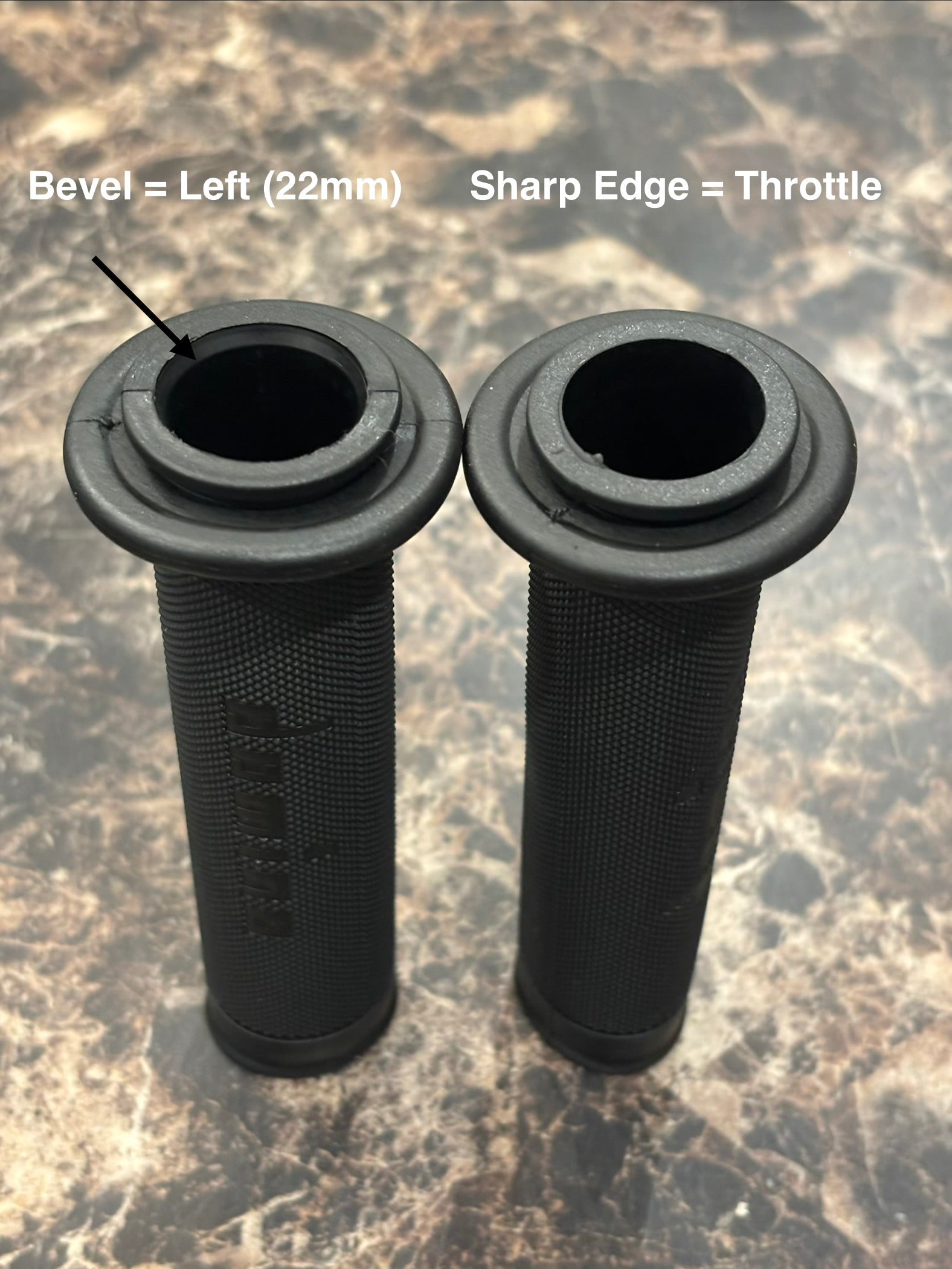

***Use soapy water to slide on grips—violent twisting in the opposite direction to get the grips on will potentially break the internal stopper.***
